ME525MTM Micro Edge 5-1/4" MTM LCRS In-Wall Speaker Each
Quick Overview
The Micro-Edge™ series in-wall and in-ceiling speakers from Dayton Audio combine sophisticated, minimalist styling with robust acoustical engineering and design features, for outstanding home theater and musical performance. The dual-woofer ME525MTM is designed to be used as a front, center, or surround channel speaker.Product Highlights
- Versatile all-purpose L/C/R/S speaker for home theater or music
- Contemporary Micro-Edge™ grills with magnetic grill retention
- Dual 5-1/4" woven Kevlar® cone woofers and 1” pivoting silk dome tweeter
- Mounts vertically or horizontally
- Room integration switch with selectable 0/-3/-6 dB treble adjustment
- Optimized 12dB/octave crossover with exclusive tuning by Dayton Audio
Product Manuals / Spec Sheets / Downloads
Dayton Audio ME525MTM User ManualDayton Audio ME525MTM Architectural & Engineering Specification Sheet
Buying Options

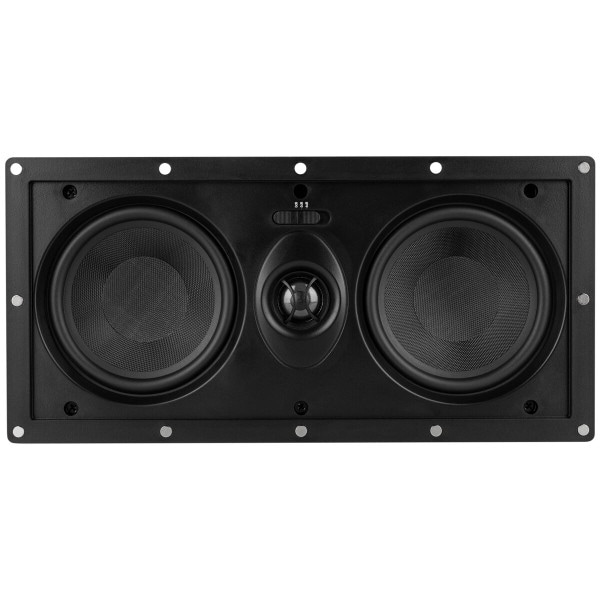

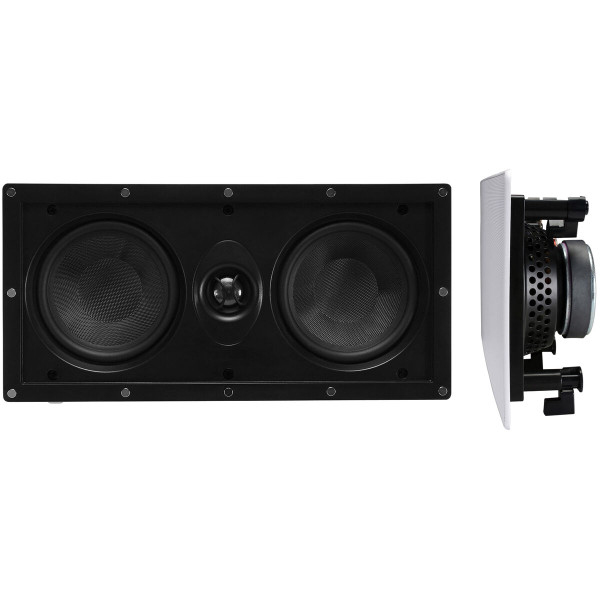

Dayton Audio’s Micro-Edge™ speakers were created to combine the high-quality sonic performance of a premium free-standing speaker with sleek, contemporary in-wall styling, for a thoroughly modern take on the in-wall speaker. The ME525MTM model uses dual woofers and a centrally-mounted pivoting silk-dome tweeter, for a speaker with symmetrical dispersion that can be mounted vertically as left/right/surround channel speakers, or horizontally under a display or projection screen as a center-channel speaker. The low-profile perforated grill with ultra-slim Micro-Edge™ frame almost disappears into the wall entirely, and is easily paintable to match its surroundings.

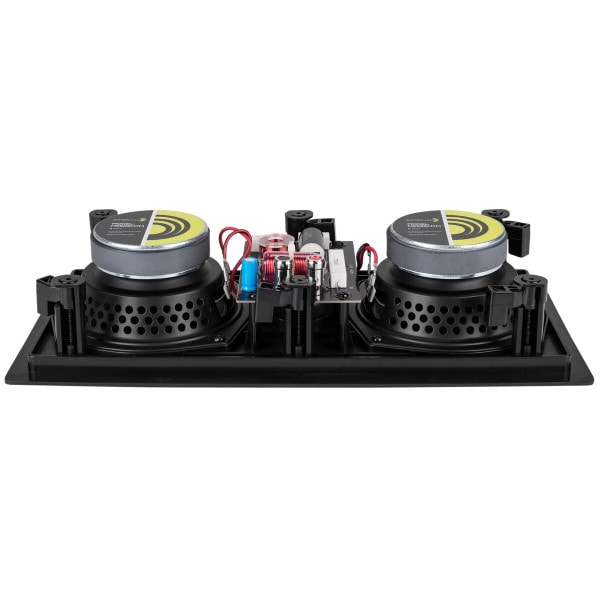

The dual 5-1/4” woofers feature woven black Kevlar cones that provide excellent transient ‘snap’ and crisp vocal clarity along with impactful bass, and the 1” silk-dome tweeter delivers rich detail that never becomes harsh, even at high volumes. The pivoting tweeter mount lets you target the best treble performance directly at the listening position, and the three-position room integration switch lets you decrease treble output if desired, for the best balance with your room’s natural acoustics.
All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together. The ME525MTM is perfectly sized to fit between studs in standard 16-inch stud spacing when mounted horizontally as a center channel speaker. No additional adjustment is required for horizontal mounting.
Model Number | ME525MTM |
Color | White |
Unit of Measure | Each |
UPC | 848791001260 |
Warranty - Parts | 5 Years |
Warranty - Labor | 5 Years |
Product Shipping Weight (lbs.) | 6 |
Product Height | 7-1/2" |
Product Width | 14-3/4" |
Product Length | -- |
Product Depth | 2-7/8" |
Speaker Series | Micro-Edge Series |
Speaker Application | In-Wall |
Speaker Configuration | 342 |
Input Rating | 346 |
Power Handling (RMS) | 50 watts |
Power Handling (max) | 100 watts |
70V Tap Settings | -- |
Frequency Response |
60 - 20 000 Hz |
Sensitivity | 86 dB @ 1W/1m (±3 dB) |
Woofer Type | Kevlar Cone |
Woofer Diameter | 5-1/4" |
Tweeter Type | Pivoting Silk Dome |
Tweeter Size | 1" |
Crossover | Yes |
Special Features | -- |
Grill Type | Removable Steel Mesh |
Replaceable Grill | -- |
Magnet Material | -- |
Magnet Weight | -- |
Mounting Hole Size | 6-1/8" x 13-3/8" |
Installation | -- |
Box Includes | -- |
