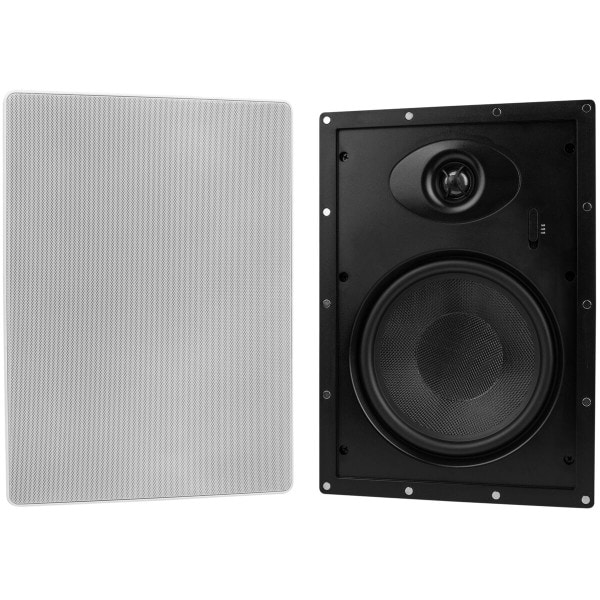

ME825W Micro Edge 8" 2-Way In-Wall Speaker Pair
Quick Overview
The Micro-Edge™ series in-wall and in-ceiling speakers from Dayton Audio combine sophisticated, minimalist styling with robust acoustical engineering and design features, for outstanding home theater and musical performance. The largest in-wall speaker in the line, model ME825W, delivers maximum sonic impact with deep bass, natural vocals, and crisp highs.Product Highlights
- Versatile multi-purpose L/R/surround speaker for home theater or music
- Contemporary Micro-Edge™ grills with magnetic grill retention
- Large 8" woven Kevlar® cone woofer and 1" pivoting silk dome tweeter
- Mounts vertically or horizontally
- Room integration switch with selectable 0/-3/-6 dB treble adjustment
- Optimized 12dB/octave crossover with exclusive tuning by Dayton Audio
Product Manuals / Spec Sheets / Downloads
Dayton Audio ME825W User ManualDayton Audio ME825W Architectural & Engineering Specification Sheet
Buying Options
Dayton Audio’s Micro-Edge™ speakers were created to combine the high-quality sonic performance of a premium free-standing speaker with sleek, contemporary in-wall styling, for a thoroughly modern take on the in-wall speaker. The ME825W model is the largest in the line, and features an 8" diameter woofer that handles high power for maximum sonic punch without sacrificing clarity. The low-profile perforated grill with ultra-slim Micro-Edge™ frame almost disappears into the wall entirely, and is easily paintable to match its surroundings.
The 8" woofer features an oversized magnet assembly and a woven black Kevlar cone that provides excellent transient ‘snap’ and crisp vocal clarity along with deep, high-impact bass, and the 1" silk-dome tweeter delivers rich detail that never becomes harsh, even at high volumes. The pivoting tweeter mount lets you target the best treble performance directly at the listening position, and the three-position room integration switch lets you decrease treble output if desired, for the best balance with your room’s natural acoustics.
All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together. For horizontal installation (e.g. center channel), model ME525MTM is recommended.
Model Number | ME825W |
Color | White |
Unit of Measure | Pair |
UPC | 848791001284 |
Warranty - Parts | 5 Years |
Warranty - Labor | 5 years |
Product Shipping Weight (lbs.) | 16 |
Product Height | 14-1/4" |
Product Width | 10-1/4" |
Product Length | -- |
Product Depth | 3-7/8" |
Speaker Series | Micro-Edge Series |
Speaker Application | In-Wall |
Speaker Configuration | 338 |
Input Rating | 346 |
Power Handling (RMS) | 80 watts |
Power Handling (max) | 160 watts |
70V Tap Settings | -- |
Frequency Response |
40 - 20 000 Hz |
Sensitivity | 88 dB @ 1W/1m (±3 dB) |
Woofer Type | Kevlar Cone |
Woofer Diameter | 8" |
Tweeter Type | Pivoting Silk Dome |
Tweeter Size | 1" |
Crossover | Yes |
Special Features | -- |
Grill Type | Removable Steel Mesh |
Replaceable Grill | -- |
Magnet Material | -- |
Magnet Weight | -- |
Mounting Hole Size | 12-7/8" H x 8-3/4" W |
Installation | -- |
Box Includes | -- |
