WP4BT 4" IP66 Indoor/Outdoor Pendant Speaker Pair Black
Quick Overview
The rugged Dayton Audio WP4BT speaker fits as well indoors as outdoors. Designed to deliver high-quality audio, the all-purpose speaker is perfect for both commercial and residential applications. Constructed from IP66 weather resistant ABS plastic, the WP4BT is perfect for outdoor patio use. With a 4" mineral-filled polypropylene woofer and a 7/8" fabric tweeter, the speaker delivers great sounding audio while providing versatile mounting options.Product Highlights
- 4" woofer with a coaxial 7/8" tweeter providing a balanced, natural response
- Versatile mounting brackets for pendant mounting, wall mount, or landscape applications
- Integrated 70V/100V transformer with selectable taps and 8 ohm bypass
- Suitable for indoor and outdoor installation
Product Manuals / Spec Sheets / Downloads
Dayton Audio WP4BT User ManualBuying Options
The Dayton Audio WP4BT indoor/outdoor multi-purpose speaker features a 2-way coaxial design complete with a 4" woofer and 7/8" tweeter. The IP66 weather resistant ABS plastic construction is able to withstand outdoor environments while remaining aesthetically pleasing for indoor use.
Versatile for Commercial and Residential Installs
The WP4BT can be used for both commercial and residential applications. The speaker features an integrated 70/100V transformer with multiple taps. The speaker also has an 8 ohm bypass for use with regular amplifiers. High quality audio comes standard with the WP4BT, even at 4" the woofer is able to provide an extended low end. No matter what your next job is, the WP4BT is a great choice for excellent sound in a discrete, compact enclosure.
Multiple Mounting Configurations
The WP4BT comes complete with mounting brackets for pendant, wall, and landscape mounting. The multiple mount configurations along with 70V and 8 ohm option provides the ultimate flexibility in application and installation design.

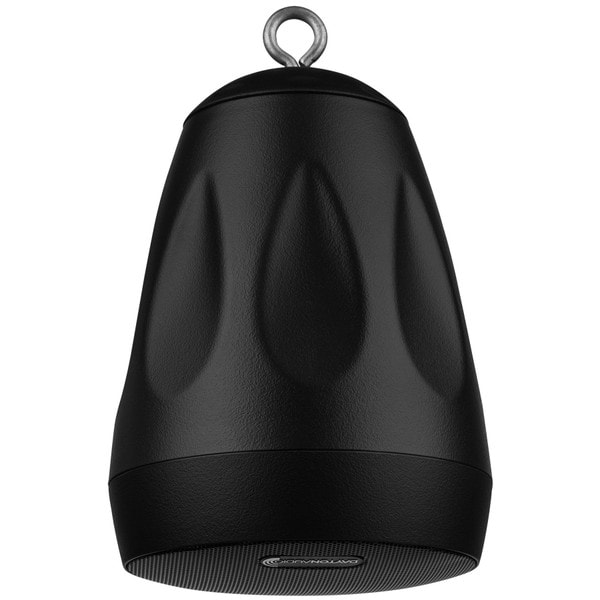

Pendant Mount
Mounting hardware includes a seperate specialized end cap covering the transformer tap selection and phoenix wire connector with an eye bolt for connecting to a hanging device such as a steel safety cable.

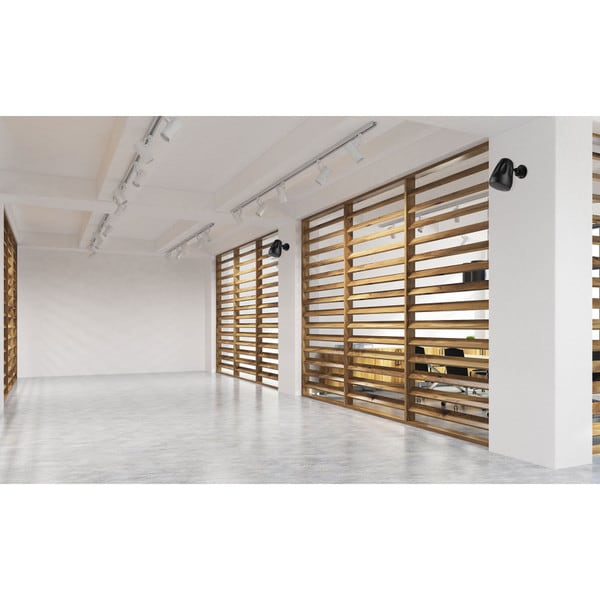

Wall Mount
Mounting hardware includes a fully enclosed end cap protecting the transformer tap selection and phoenix wire connector. The speaker connects to a ball joint mount for both vertical and horizontal axis configuration.

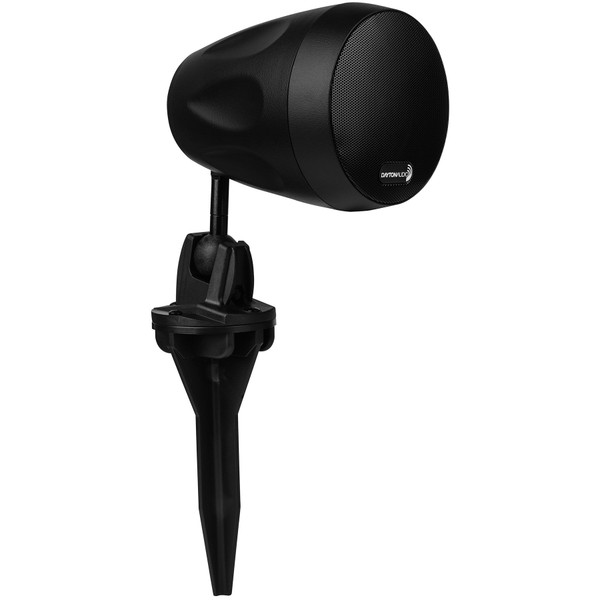

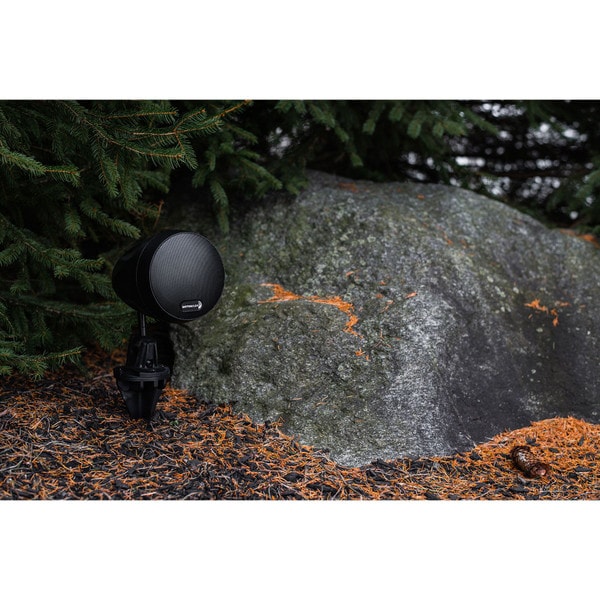

Landscape Mount
Mounting hardware includes a fully enclosed end cap protecting the transformer tap selection and phoenix wire connector. The speaker connects to a ball joint mount which is attached to a landscape style stake providing sturdy support for the speaker.
Specifications
- Description: Commercial indoor/outdoor speaker
- • Woofer: 4" mineral-filled polypropylene
- • Tweeter: 7/8" fabric
- • Frequency response: 80-20,000 Hz
- • Impedance: 8 ohms/70V
- • 70V transformer taps: NC,10, 5, 2.5, 1.25
- • 100V transformer taps: NC, 20, 10, 5, 2.5W
- • Power handling (RMS/Peak): 20/40W
- • SPL: 87 dB / 88 dB @ 8 ohm setting, 2.83V/1m
- • Ingress protection rating: IP66
- • Dimensions: 5-3/8" H x 6-3/4" Dia.
Model Number | WP4BT |
Color | Black |
Unit of Measure | Pair |
UPC | 848791005459 |
Warranty - Parts | 5 Years |
Warranty - Labor | 5 Years |
Product Shipping Weight (lbs.) | 6.8 |
Product Weight | -- |
Product Height | 5.375" |
Product Width | -- |
Product Length | -- |
Product Depth | 6.75" Dia. |
