EX25HRDS-4 IMS™ High Roll Dual Suspension 25mm Interchangeable Hardware Mount Exciter 20W 4 Ohm
Quick Overview
Take your product or project to the next level by turning it into a speaker! The EX25HRDS-4 is designed by Dayton Audio with the exclusive IMS™ Interchangeable mounting system. The EX25HRDS-4 has a 1" voice coil and 20 watt RMS power handling, high-roll surround and dual suspension for more output than most other coin-type exciters.Product Highlights

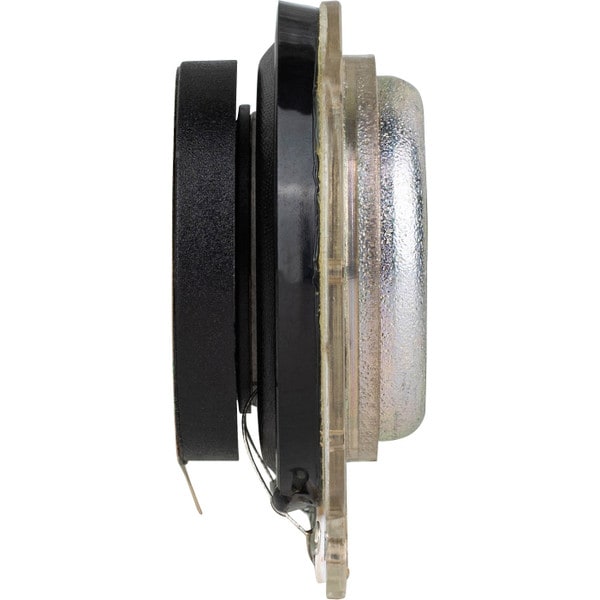

- Small size; just under 2" diameter, about 9/16" high
- Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters
- Rare-earth neodymium motor and a proprietary voice coil
- 1" voice coil for 20 watt RMS power handling
- Easily swap non-functional units out in the field
- 4-ohm impedance for use with small, Class D amplifiers
- Pre-applied 3M VHB™ adhesive for quick, durable installation
Product Manuals / Spec Sheets / Downloads
Dayton Audio EX25HRDS-4 Specification SheetBuying Options
Dayton Audio EX25HRDS-4 IMS™ Coin Type 25mm Interchangeable Hardware Mount Exciter 20W 4 Ohm
Test the limits of your imagination and turn any surface into a great sounding speaker system
Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio!
Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!
Key Specs:
- Power Handling (RMS): 20 Watts
- Power Handling (MAX): 40 Watts
- Impedance: 4 Ω
- Neodymium Motor
1/12th octave smoothing - measurement taken with transducer adhered off-center on a 12" x 12" x ½" foam core board in an infinite baffle setup.
Note: This information is for comparison purposes only, the actual frequency response will depend on many factors of which the diaphragm being the greatest contributor.
Aural Excitement
Dayton Audio's 25 mm EX25HRDS-4 IMS™ coin type exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.
Exclusive IMS™ Interchangeable Mounting System

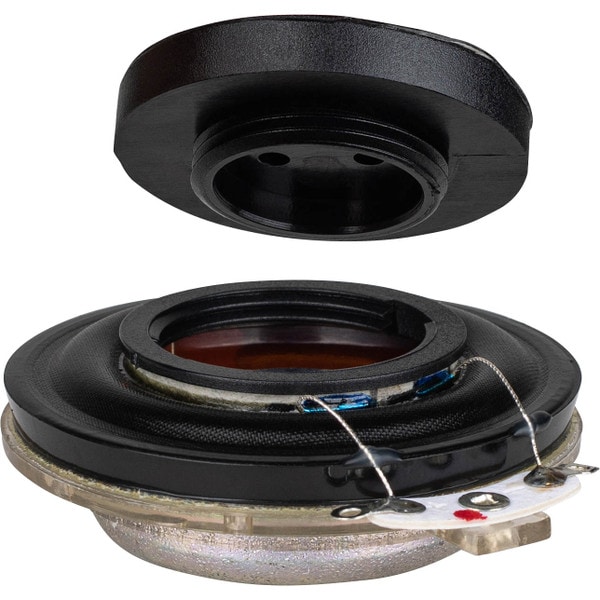

With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.
Model Number | EX25PCDS-4 |
Color | Black |
Unit of Measure | Each |
UPC | 848791009099 |
Warranty - Parts | 5 Years |
Warranty - Labor | 5 Years |
Product Shipping Weight (lbs.) | .2 |
Speaker Type | Exciter |
Power Handling (RMS) | 20 watts |
Power Handling (max) | 40 watts |
Continuous Program Power | -- |
Impedance | 4 ohms |
Sensitivity | -- |
Frequency Response | -- |
Voice Coil Diameter | 25 mm |
Magnet Weight | -- |
DC Resistance (Re) | 3.6 ohms |
Voice Coil Inductance (Le) | 0.06 @ 10kHz |
Resonant Frequency (Fs) | 133 Hz |
Mechanical Q (Qms) | -- |
Electromagnetic Q (Qes) | -- |
Total Q (Qts) | 2.19 |
Diaphragm Mass Inc. Airload (Mms) | -- |
Moving Mass Of Diaphragm (Mmd) | -- |
Mechanical Compliance of Suspension (Cms) | -- |
Surface Area Of Cone (Sd) | -- |
Volume of Displacement (Vd) | -- |
BL Product (BL) | -- |
Compliance Equivalent Volume (Vas) | -- |
Maximum Linear Excursion (Xmax) | -- |
Drivers Mechanical Losses (Rms) | -- |
Entry / Exit Diameter | -- |
Surround Material | -- |
Voice Coil Wire Material | -- |
Voice Coil Former | -- |
Basket/Frame Material | -- |
Magnet Material | -- |
Overall Outside Diameter | 45.5 mm |
Overall Depth | 21 mm |
Baffle Cutout Diameter | -- |
Mounting Hole Diameter | -- |
Bolt Circle Diameter | -- |
Product Weight | -- |
