Quick Overview

The Dayton Audio SS10-PR 10" Signature Series Passive Radiator makes it easy to extract powerful low end extension from compact enclosures, making it the ideal partner for the SS10-22 subwoofer. With the same rigid cast aluminum frame, anodized aluminum cone, and rubber surround as its active counterpart, the SS10-PR blends seamlessly into any build while handling the extreme excursion required by today’s high-output subwoofers. Thanks to Dayton Audio’s Sandwich Mass Structure (SMS) tuning system, customizing your system’s performance is quick, precise, and reliable.

Product Highlights

Signature Series styling with cast aluminum frame, aluminum cone, and rubber surround — visually identical to the SS10-22 driver
Passive radiator design eliminates port noise and enables deep bass from compact enclosures
Easy tuning with threaded bolt, wing nut, and nylock nut adjustment system
Passive radiator design eliminates port noise and enables deep bass from compact enclosures
Includes five 75 g weights for precise mass loading and flexible tuning options
Perfect companion for the Dayton Audio SS10-22 in compact subwoofer systems

Product Manuals / Spec Sheets / Downloads

Dayton Audio SS10-PR Specification Sheet

Buying Options

Dayton Audio SS10-PR 10" Signature Series Passive Radiator

The Dayton Audio SS10-PR 10" Signature Series Passive Radiator is engineered to extend bass response in compact enclosures, perfectly complementing the SS10-22 subwoofer. By replacing a traditional port with a passive radiator, this design eliminates turbulence and noise while achieving deep, powerful bass in cabinets that remain space-efficient.

Signature Series Styling and Construction

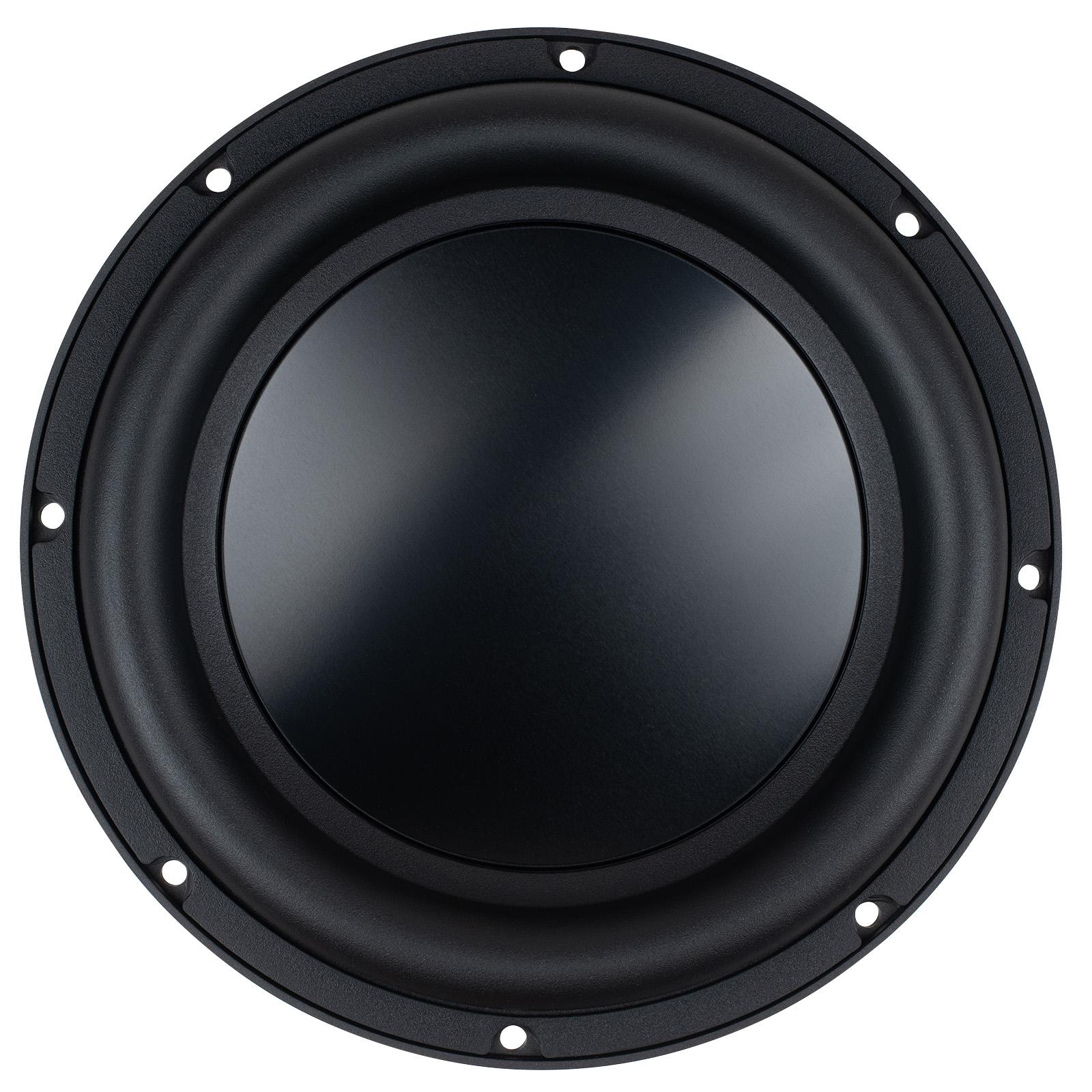

Like every member of the Signature Series, the SS10-PR is built to match its powered counterpart in both form and function. A heavy-duty cast aluminum frame, anodized aluminum cone, and high-roll rubber surround provide the strength and excursion needed for modern high-output systems. From the front, the SS10-PR is visually identical to the SS10-22 driver, ensuring a seamless, professional appearance in any build.

Innovative Sandwich Mass Structure

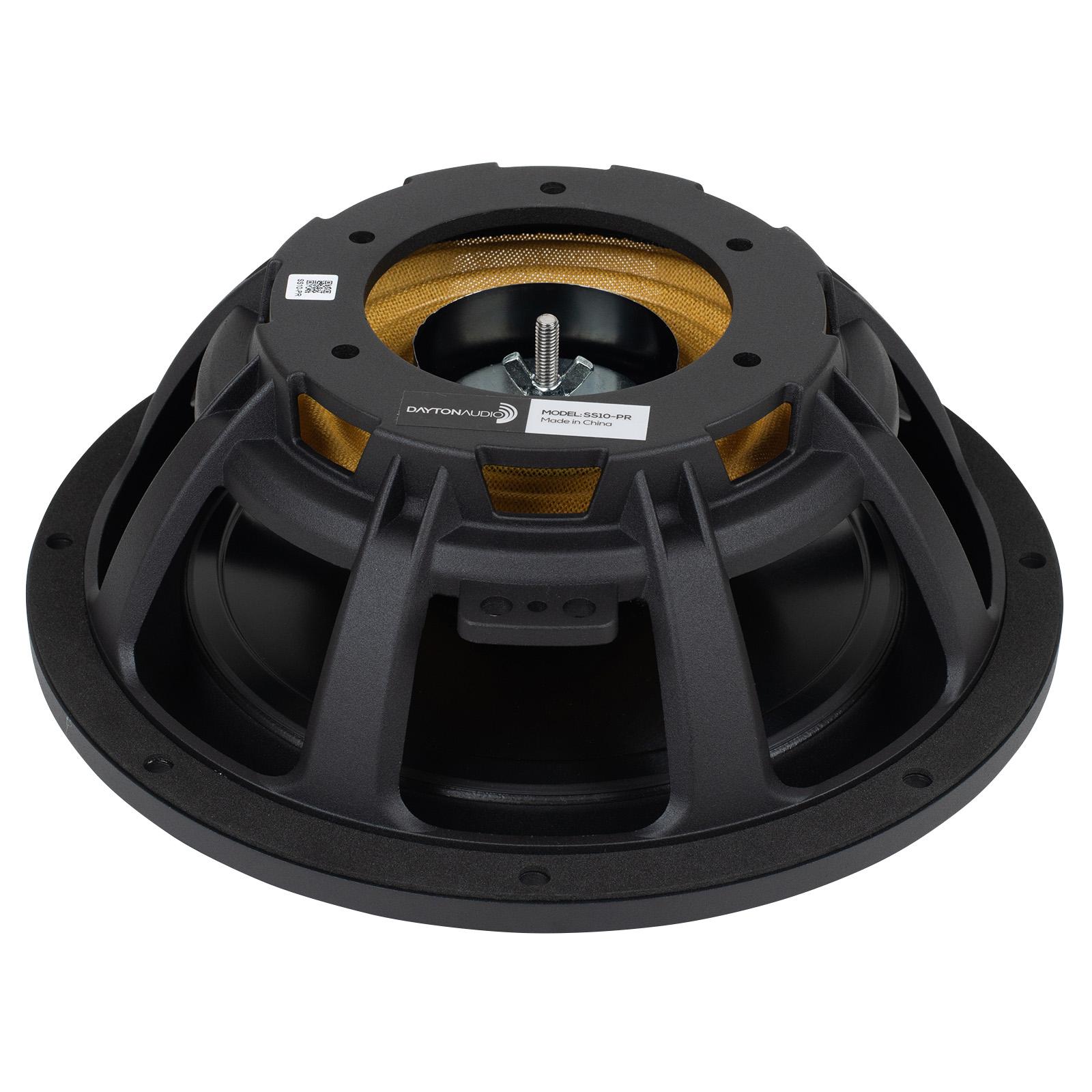

Dayton Audio’s Sandwich Mass Structure (SMS) sets the SS10-PR apart. By placing all added tuning mass between the spider and surround, the system maintains perfect symmetry and long-term reliability under heavy excursion. Adjusting the tuning is simple thanks to the threaded bolt, wing nut, and nylock nut assembly, while the included five 75 g weights give you precise control over mass loading and tuning frequency.

Achieve Effortless Deep Bass — the Perfect Partner for the SS10-22

When paired with the SS10-22, the Dayton Audio SS10-PR passive radiator allows you to extract the deepest, cleanest bass possible from compact enclosures. Combining rugged construction, easy tuning, and Signature Series styling, the SS10-PR is the ideal solution for builders and designers who want maximum low-frequency performance without the drawbacks of oversized or noisy ports.

Package Contents

(1) Passive Radiator
(5) 75 gram disk weights
(1) Nylon locking nut (for final assembly)
(1) Wing Nut

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd=Xmax ∗ Sd

Note: Passive raidator specs listed below measured with no additional mass included.

Product Details

Speaker Series	Signature Series
Model Number	SS10-PR
Color	Black
Unit of Measure	Each
UPC	848791011139
Warranty - Parts	5 Years
Warranty - Labor	5 Years
Product Shipping Weight (lbs.)	8 lbs.
Speaker Type	Passive Radiator
Nominal Diameter	10"
Cone / Diaphragm Material	Aluminum
Surround Material	Rubber
Basket/Frame Material	Cast Aluminum
Overall Outside Diameter	266 mm
Overall Depth	87 mm
Baffle Cutout Diameter	236.7 mm
# Mounting Holes	8
Bolt Circle Diameter	252 mm
