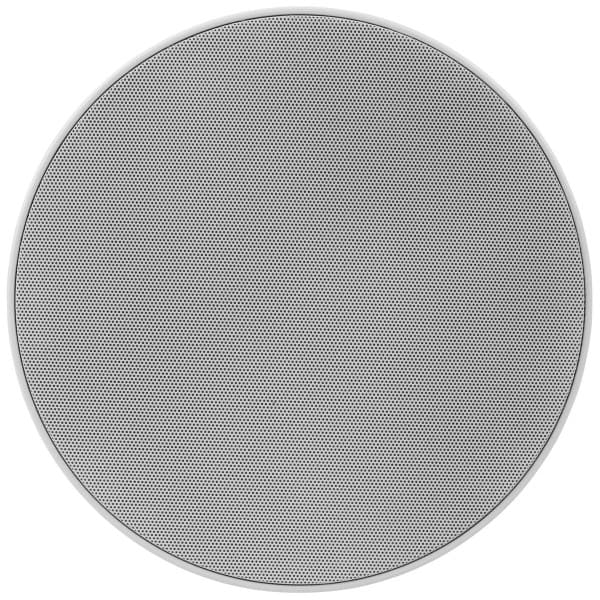

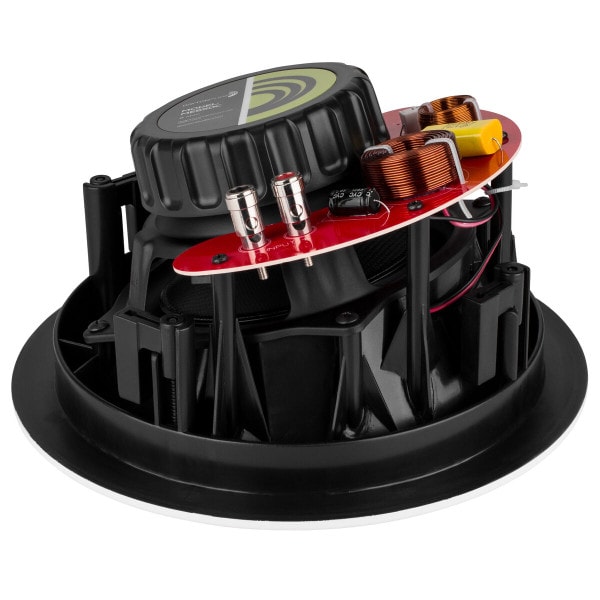

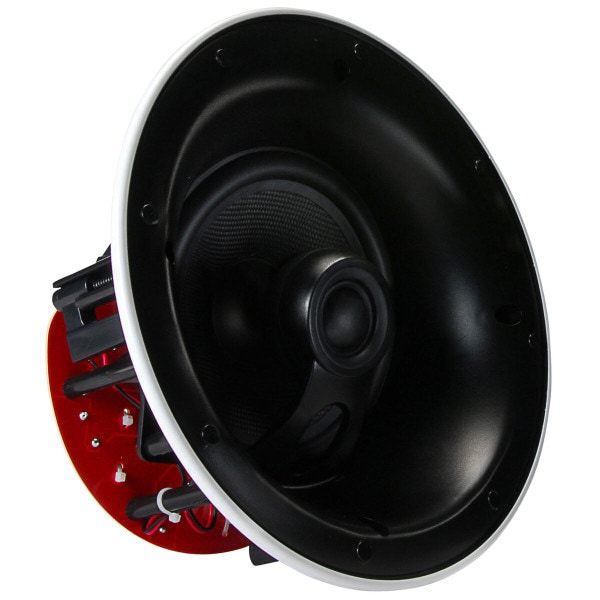

ME650C Micro Edge 6-1/2" LCRS 15° Angled Ceiling Speaker
Quick Overview
What the world really needs are ceiling speakers that sound spectacular, but have a look thats understated – almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the angled ME6500C fill that need like no others on the market.Product Highlights
- The perfect "all speaker solution" for ceiling mounted home theater systems
- 15° angle provides cinematic imaging
- Contemporary Micro-Edge™ design
- Long-throw 6-1/2" Kevlar® woofer with rubber surround
- 1" pivoting silk dome tweeter
- 12 dB/octave optimized crossover
Product Manuals / Spec Sheets / Downloads
Dayton Audio ME650C User ManualDayton Audio ME650C Architectural & Engineering Specification Sheet
Buying Options
Dayton Audio ME650C 6-1/2" LCRS 15° Angled Ceiling Speaker
What the world really needs are ceiling speakers that sound spectacular, but have a look that's understated – almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the angled ME6500C fill that need like no others on the market.
Quality Inside and Out
Dayton Audio's LCRS ceiling speakers are designed as an "all speaker solution" for ceiling mounted home theater systems. The new Micro-Edge™ design offers a modern look for today's contemporary décor.


Installation Made Easy
A 15° angle provides cinematic imaging for lifelike sound playback when used in front, center channel, or surround speaker applications. The 6-1/2" woven Kevlar cone woofer provides stunningly warm mids and tight, accurate bass; 1" pivoting silk dome tweeters reproduce clear highs that rival esoteric loudspeakers while allowing adjustment for customizing the soundstage and imaging according to a room's layout.
Timbre Matched
All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together.


Specifications:
- Diameter (including grill): 9-7/8"
- Mounting Depth: 2-7/8"
- Overall Depth: 5-5/8"
- Cutout Diameter: 8-1/4"
- Frequency Response: 50-20,000 Hz
- Woofer: 6-1/2" Black Woven Kevlar
- Tweeter: 1" Silk Dome
- Impedance: 8 Ohm
- Power Handling: 35W RMS
- Sensitivity: 88 dB 1W/1m
Model Number | ME650C |
Color | White |
Unit of Measure | Each |
UPC | 848791000126 |
Warranty - Parts | 5 Years |
Warranty - Labor | 5 Years |
Product Shipping Weight (lbs.) | 5.5 |
Product Height | -- |
Product Width | 9-7/8" (diameter) |
Product Length | -- |
Product Depth | 5-5/8" |
Speaker Series | Micro-Edge Series |
Speaker Application | Ceiling |
Speaker Configuration | 376 |
Input Rating | 346 |
Power Handling (RMS) | 35 watts |
Power Handling (max) | 70 watts |
70V Tap Settings | -- |
Frequency Response |
50 - 20 000 Hz |
Sensitivity | 88 1W/1m (±3 dB) |
Woofer Type | Kevlar |
Woofer Diameter | 6-1/2" |
Tweeter Type | Silk |
Tweeter Size | 1" |
Crossover | Yes |
Special Features | 595 |
Grill Type | Metal |
Replaceable Grill | -- |
Magnet Material | -- |
Magnet Weight | -- |
Mounting Hole Size | 8-1/4" (diameter) |
Installation | -- |
Box Includes | -- |
