WP8WT 8" IP55 Indoor/Outdoor Pendant Speaker 70V/100V with 8 Ohm Bypass White

Quick Overview

The rugged Dayton Audio WP8WT speaker fits as well indoors as outdoors. Designed to deliver high-quality audio, the all-purpose speaker is perfect for both commercial and residential applications. Constructed from IP55 weather resistant ABS plastic, the WP8WT is perfect for outdoor patio use. With a 8" mineral-filled polypropylene woofer and a 1" fabric tweeter, the speaker delivers great sounding audio while providing versatile mounting options. Integrated 70V/100V transformer with selectable taps and 8 ohm bypass.

Product Highlights

  • 8" woofer with a coaxial 1" tweeter providing a balanced, natural response
  • Integrated 70V/100V transformer with selectable taps and 8 ohm bypass
  • Suitable for indoor and outdoor installation
  • Package includes one speaker, pendant mount end cap, steel cable, gripple connector, and eye bolt
  • Great Sounding High Bay Warehouse Speakers
  • Perfect for Pub, Brewery and Restaurant Background Music

Product Manuals / Spec Sheets / Downloads

Dayton Audio WP8BT/WT User Manual
Type alt text here

Dayton Audio WP8WT 8" IP66 Indoor/Outdoor Pendant Speaker

The Dayton Audio WP8WT indoor/outdoor multi-purpose speaker features a 2-way coaxial design complete with a 8" woofer and 1" tweeter. The IP66 weather resistant ABS plastic construction is able to withstand outdoor environments while remaining aesthetically pleasing for indoor use.


    Key Specs:


  • Design: Multi-Mount Pendant Speaker
  • Woofer: 8" Mineral-Filled Polypropylene Cone
  • Tweeter: 1" Fabric
  • Power Handling (RMS): 75 Watts @ 8 Ohms
  • Power Handling (MAX): 150 Watts @ 8 Ohms
  • Frequency Response: 40-20,000 Hz
  •



Versatile for Commercial and Residential Installs



The WP8WT can be used for both commercial and residential applications. The speaker features an integrated 70/100V transformer with multiple taps. The speaker also has an 8 ohm bypass for use with regular amplifiers. High quality audio comes standard with the WP8WT, even at 8" the woofer is able to provide an extended low end. No matter what your next job is, the WP8WT is a great choice for excellent sound in a discrete, compact enclosure.

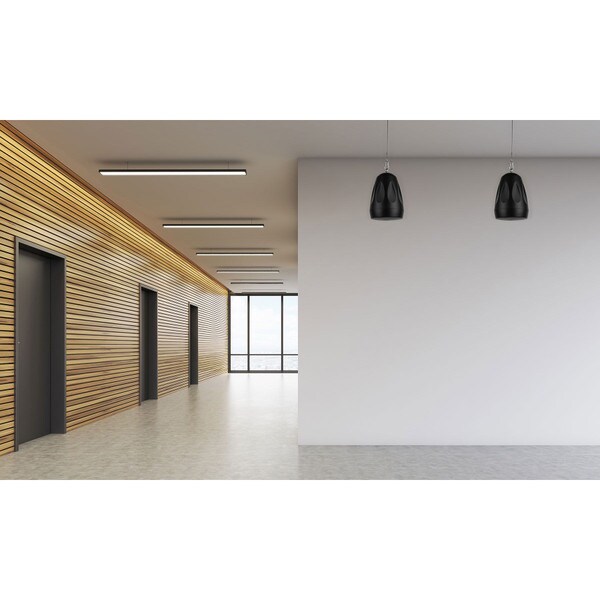

Pendant Mount



Mounting hardware includes a separate specialized end cap covering the transformer tap selection and phoenix wire connector with an eye bolt for connecting to a hanging device such as a steel safety cable.


For Use Indoors & Out



If you need more mounting versatility, the Dayton Audio pendant indoor/outdoor speaker line provides multiple installation configurations including pendant mount, wall mount, and landscape mount. Complete with 70V/100V and 8‑ohm operation, the pendants can be used with commercial and consumer amps. Constructed from weather resistant ABS plastic, the pendant line stands up to any environment.



Uses:



  • Gardens, patios, landscaped audio
  • Pools, theme parks, attraction venues
  • Entertainment venues, bars, restaurants
  • Warehouses, shipping centers




Specifications:

  • Design: Indoor Outdoor Multi-Mount Pendants
  • Power Handling (RMS): 75 Watts
  • Power Handling (MAX): 150 Watts
  • Frequency Response: 40-20,000 Hz
  • Impedance: 8Ω / 70V / 100V
  • 70V Taps: 60, 30, 15, 7.5, 3.75W
  • 100V Taps: NC, 30, 15, 7.5W
  • SPL: 89.5 dB @ 8 Ohms setting 2.83V/1m
  • Ingress Protection Rating: IP66
  • Landscape Stake Length: 3.5" Dia. x 8.25" L
  • Wall Mount Dimensions: 3.5" Dia. x 4.5" L (4 screw holes)
  • Pendant Mount Support Dimensions: 8" Dia. (8 screw holes)
  • Dimensions: 12-1/4" H x 9-1/8" Dia.
  • Weight: 11.7 lbs. (each)

Model Number WP8WT
Color White
Unit of Measure Each
UPC 848791007422
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) --
Product Weight --
Product Height 12-1/4"
Product Width --
Product Length --
Product Depth 9-1/8" Dia.
